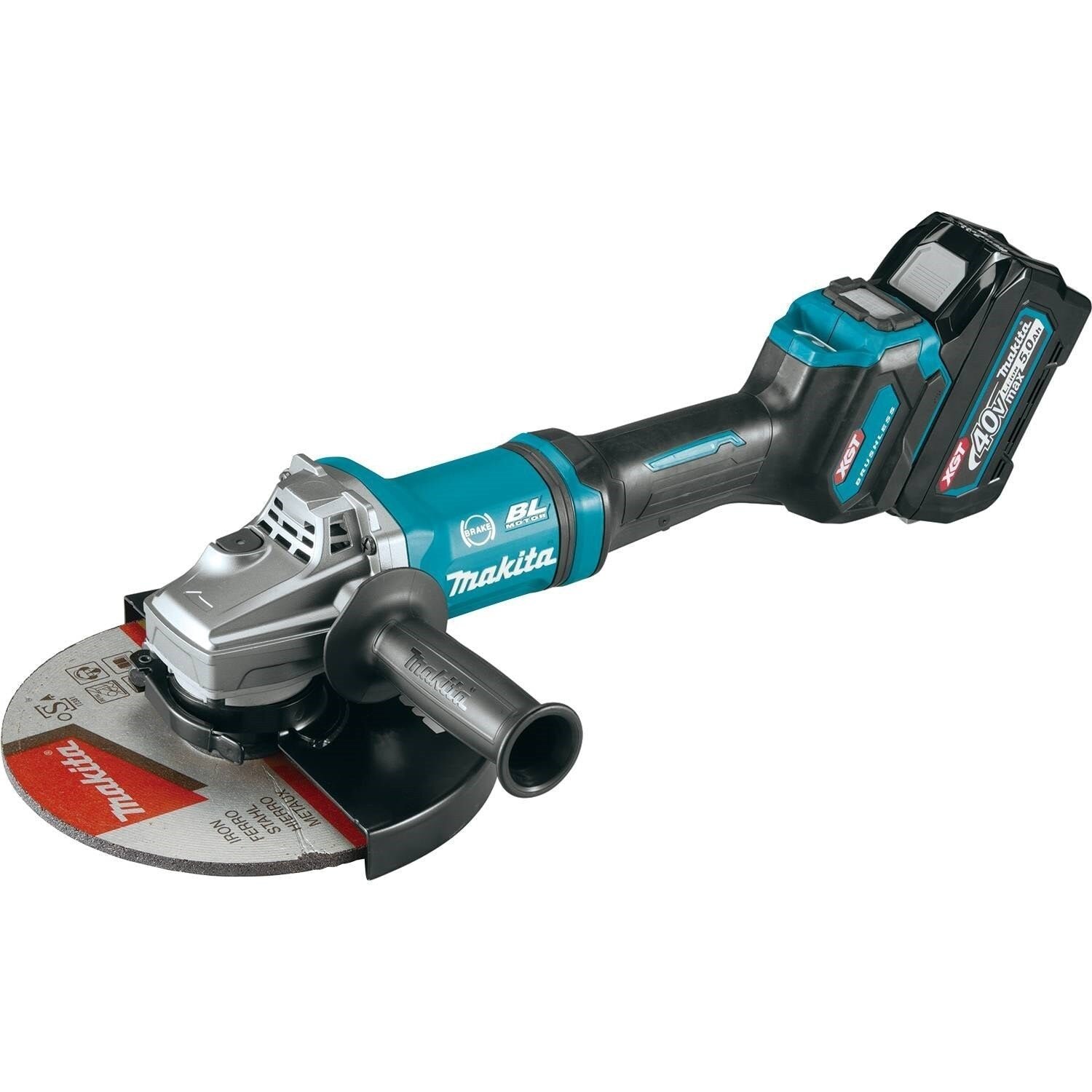

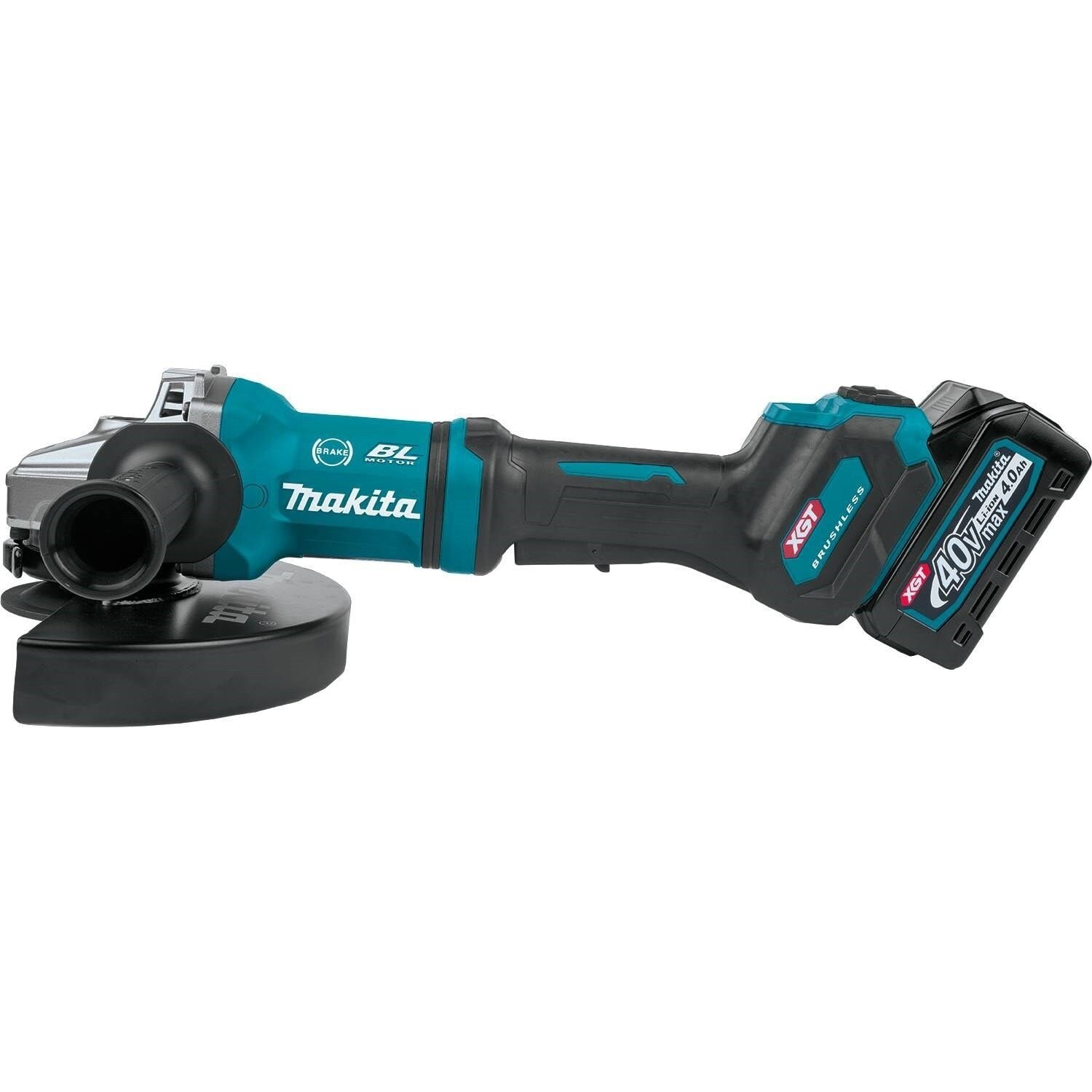

Makita GAG10M1 Description

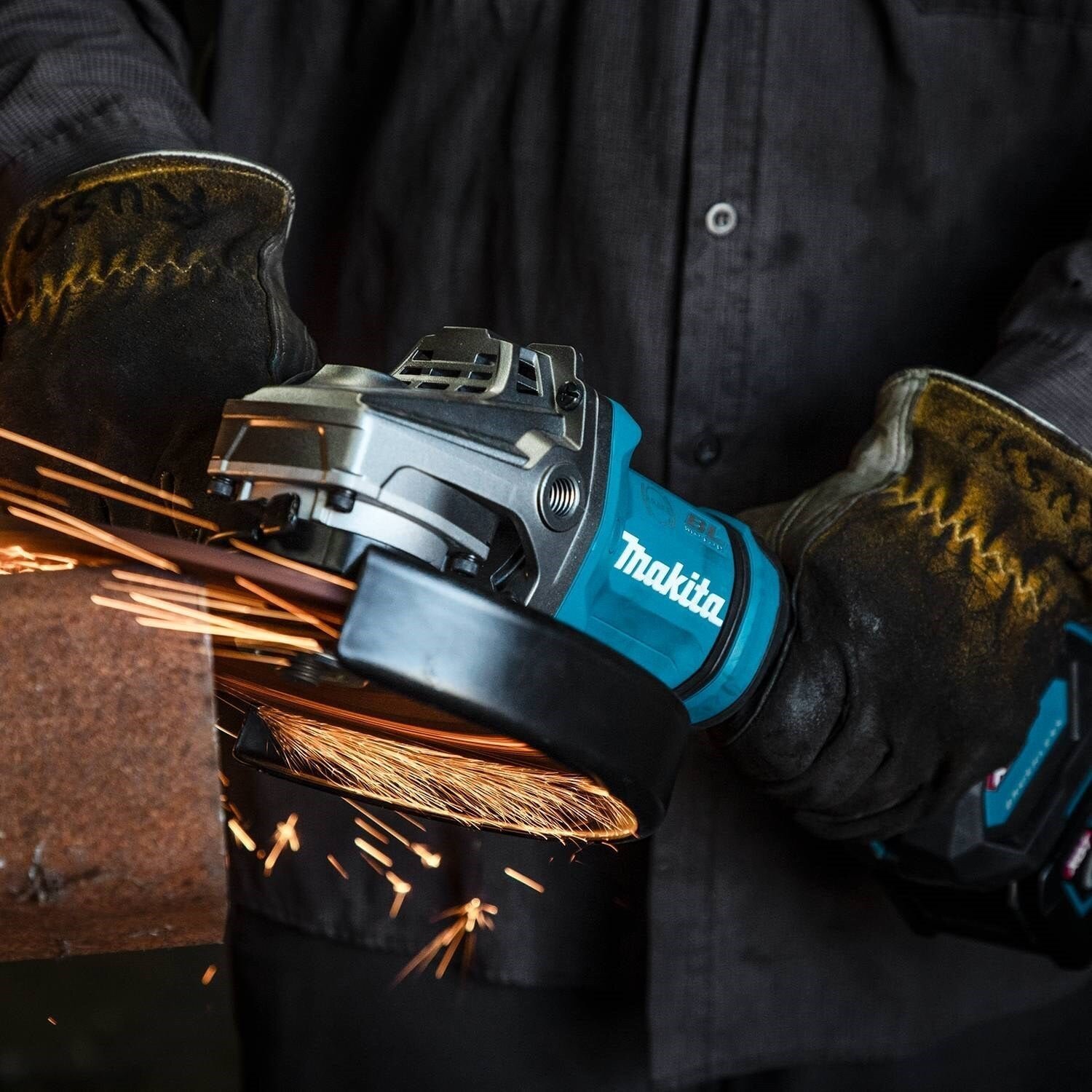

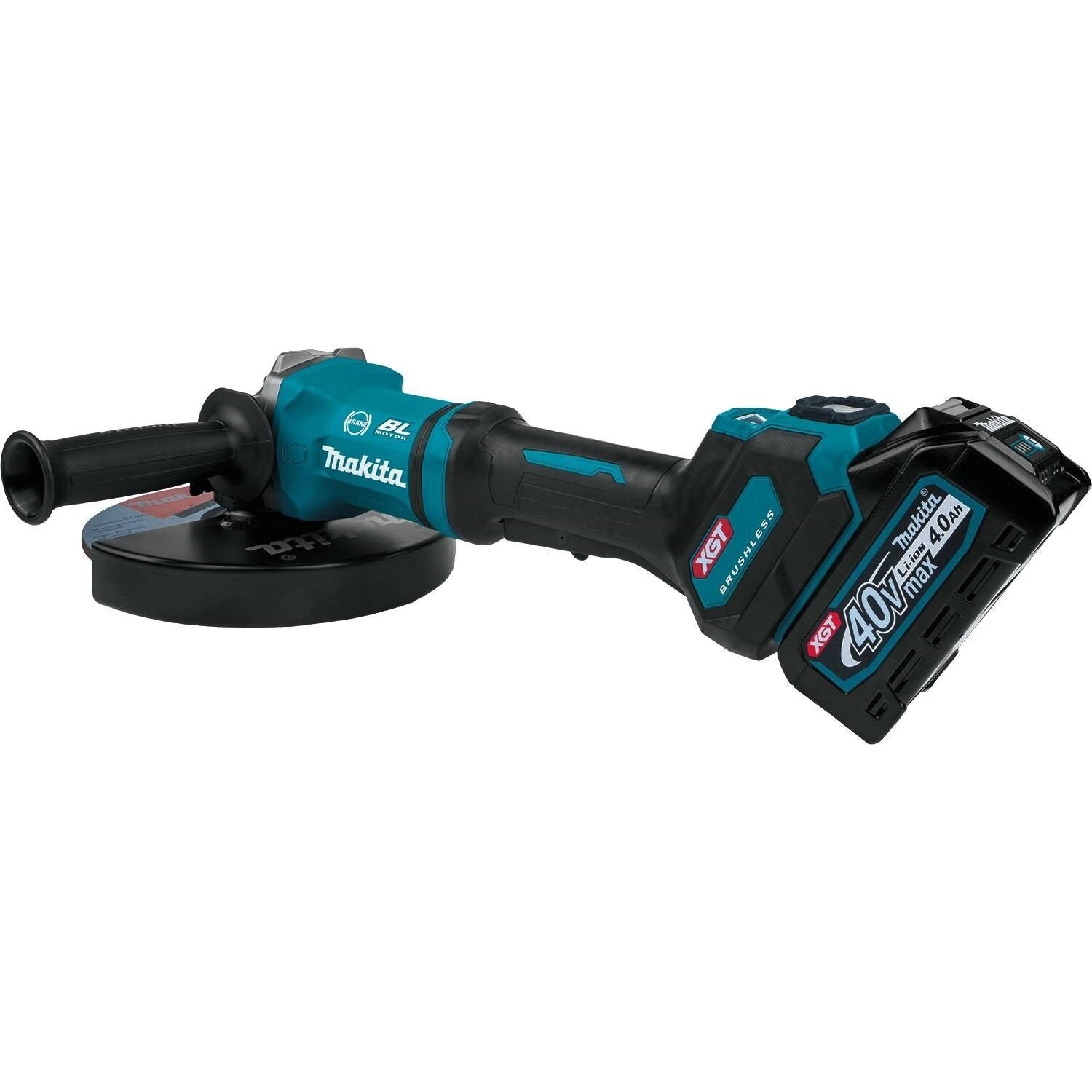

The 40V max XGT® Brushless Cordless 9” Paddle Switch Angle Grinder Kit with Electric Brake and AWS® (GAG10M1) delivers corded grinding performance without the cord for the most demanding applications. It’s powered by a Makita-built brushless motor which delivers the power and performance needed for heavy-load applications. The GAG010M1 is ideal for grinding and cutting a wide range of materials including tile, concrete, pipe, conduit, and more.
An electric current limiter helps protect the motor from overload in high-torque applications. Makita’s exclusive Automatic Speed Change™ technology automatically adjusts speed and torque during operation for optimal performance. Additional features include an electric brake that stops the grinding or cut-off wheel in 2 seconds or less and Active Feedback-sensing Technology (AFT®) that turns the motor off if rotation of the wheel is forced to a stop.
A paddle switch with no lock-on is convenient. A quick guard rotation provides tool-less adjustments for increased productivity. Anti-restart protection is engineered to prevent motor start-up when the battery is inserted while the switch is locked on. A soft start suppresses start-up reaction and provides smooth start-ups.

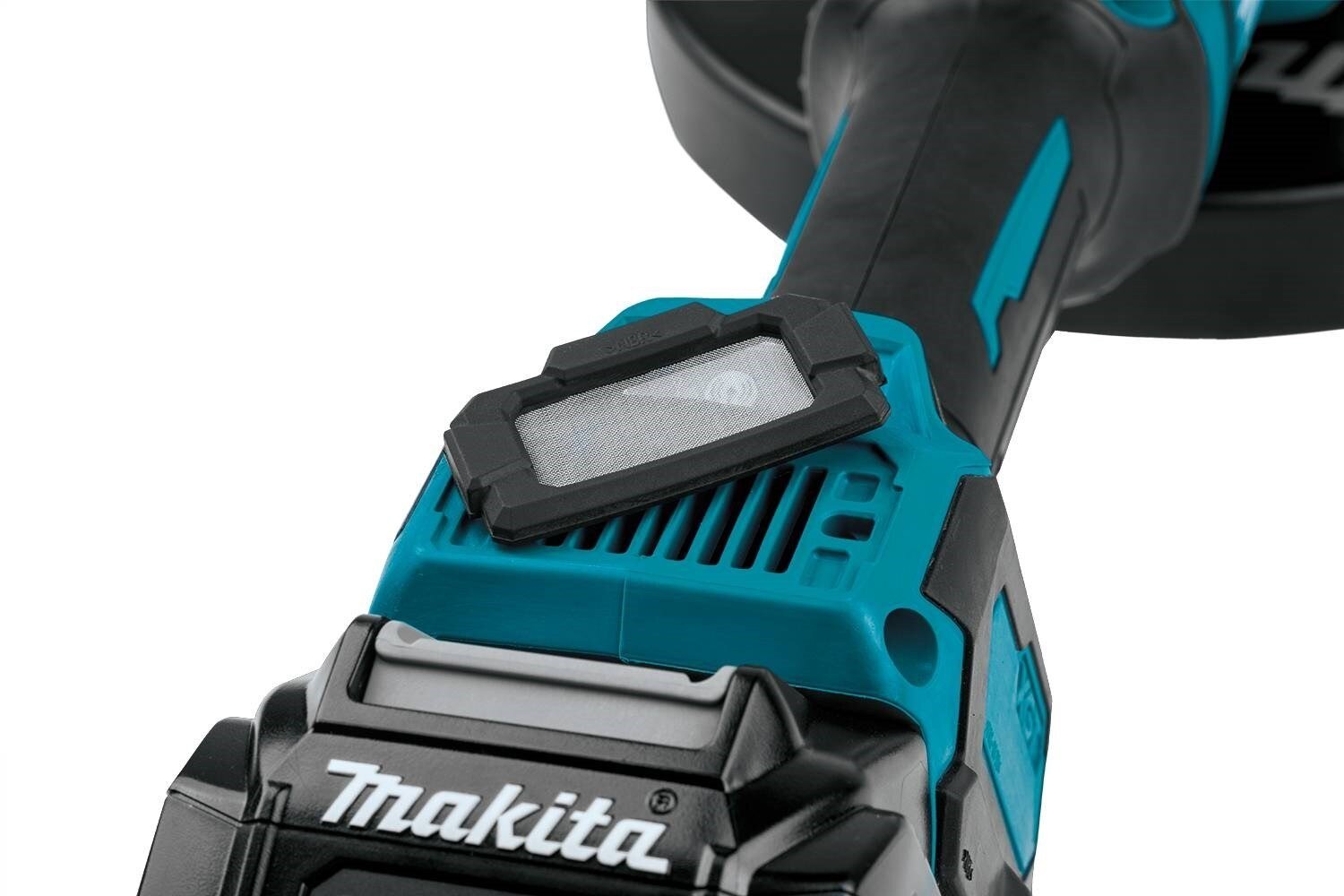

Wire mesh intake covers are engineered to prevent debris from entering the motor. The GAG10M1 is also equipped with Makita’s Extreme Protection Technology (XPT™), a series of protective seals inside the tool. XPT is designed to improve a tool’s operation in harsh conditions by channeling water and dust from key internal components. Reinforced metal gear housing provides additional durability on the job site.

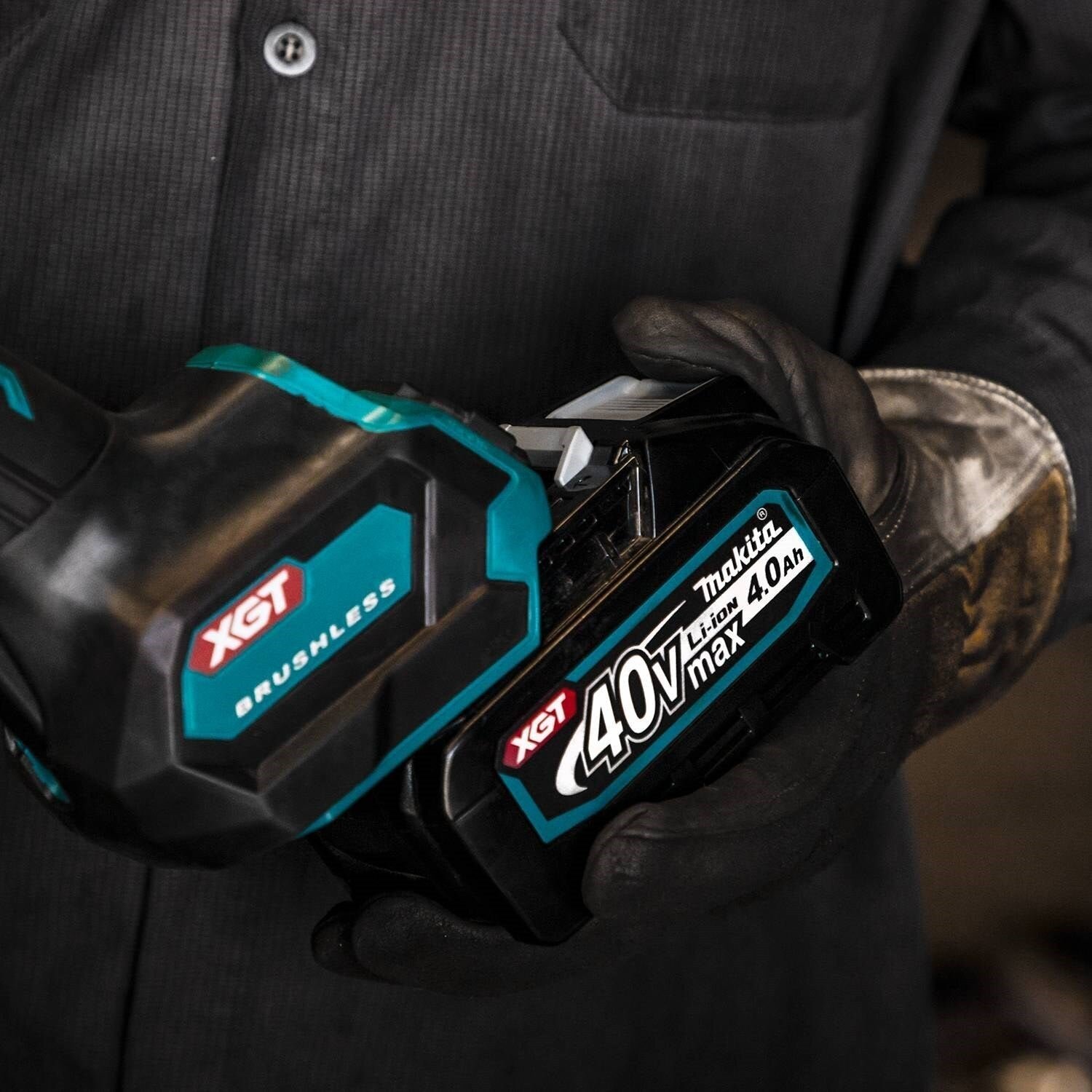

XGT is a system of equipment, tools, batteries and chargers utilizing 40v max lithium-ion batteries. XGT is engineered to deliver high power to take on high-demand applications, allowing users to completely transition to a cordless job site. XGT is equipped with advanced brushless motor engineering, intelligent digital communication, and superior durability features to outpower, outsmart and outlast the competition.

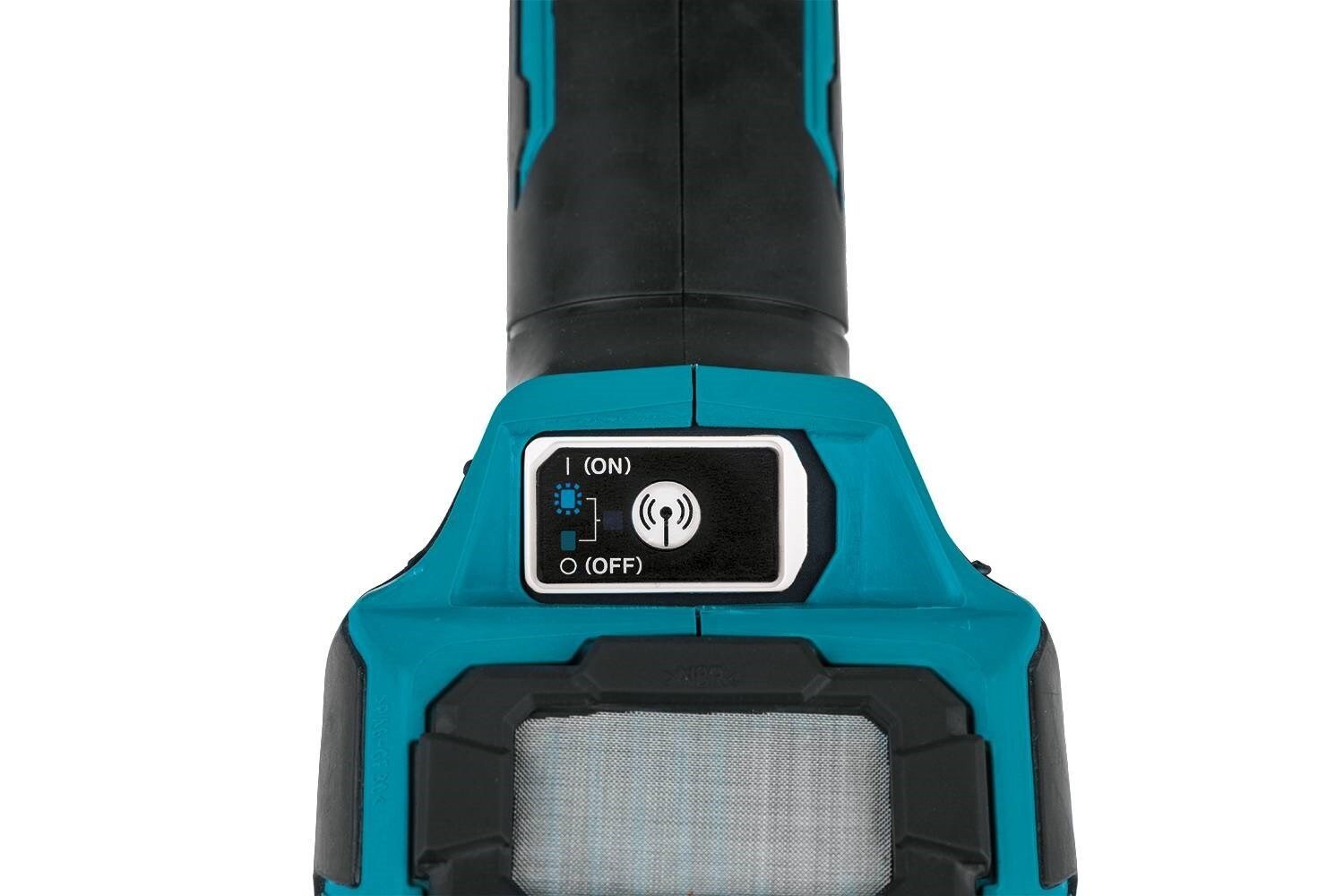

Auto-Start Wireless System (AWS®) uses Bluetooth® technology for wireless power-on and power-off communication between the equipped tool and dust extractor. Once connected via AWS, the AWS-equipped dust extractor will automatically power on or off when the AWS-equipped cordless tool starts or stops, running only when the tool is in use. This increases productivity on a single charge and reduces continuous noise at the job or work site.

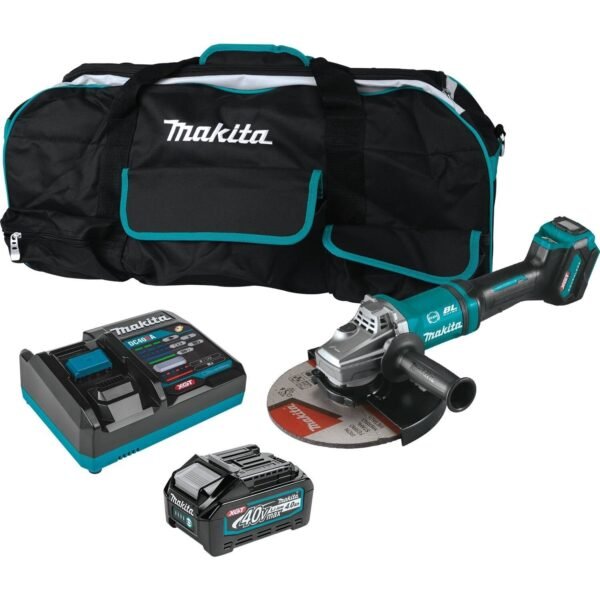

Makita GAG10M1 Includes
- 40V max XGT® Brushless 7″ / 9″ Paddle Switch Angle Grinder, with Electric Brake, AWS® Capable (GAG10Z)

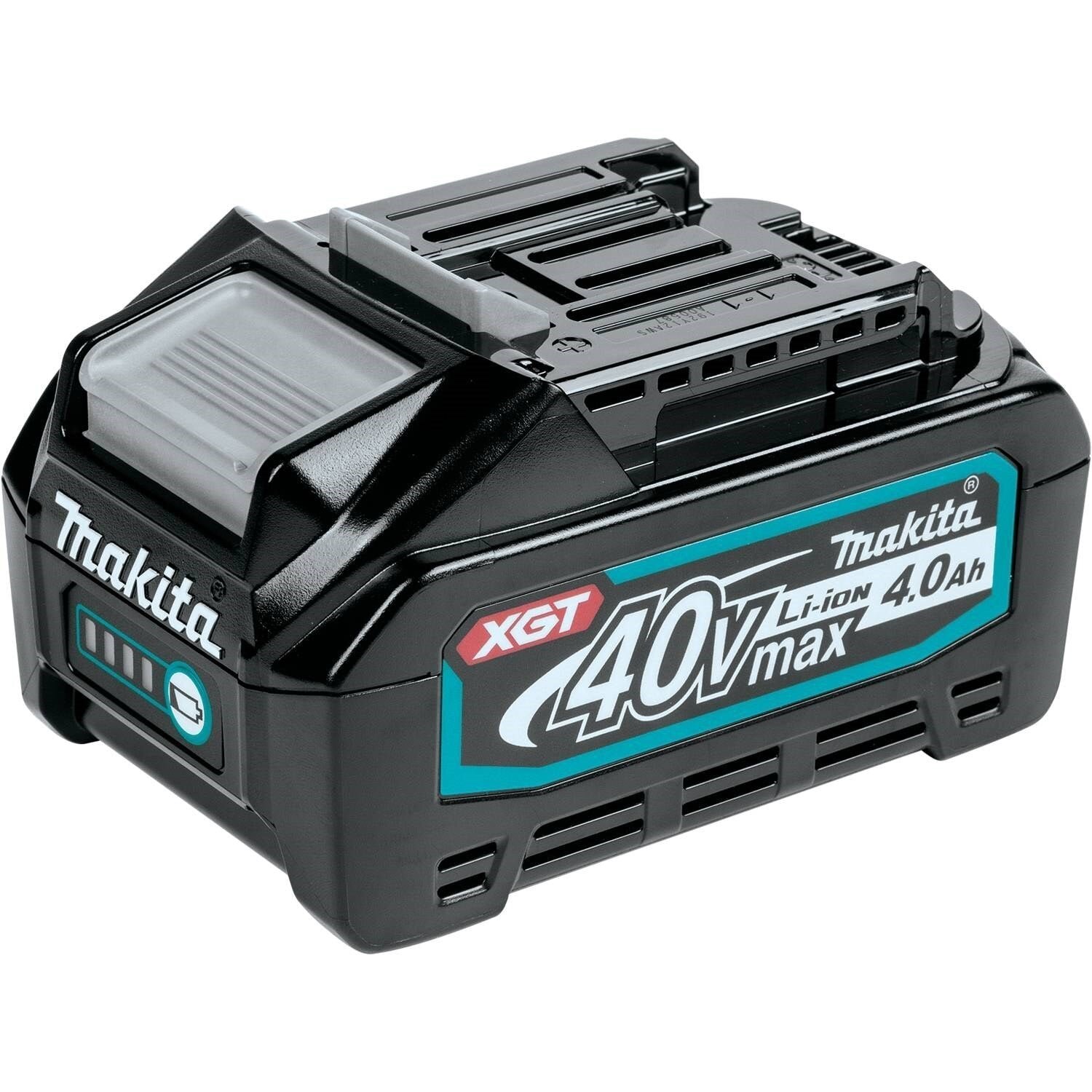

- 40V max XGT® 4.0Ah Battery (BL4040)

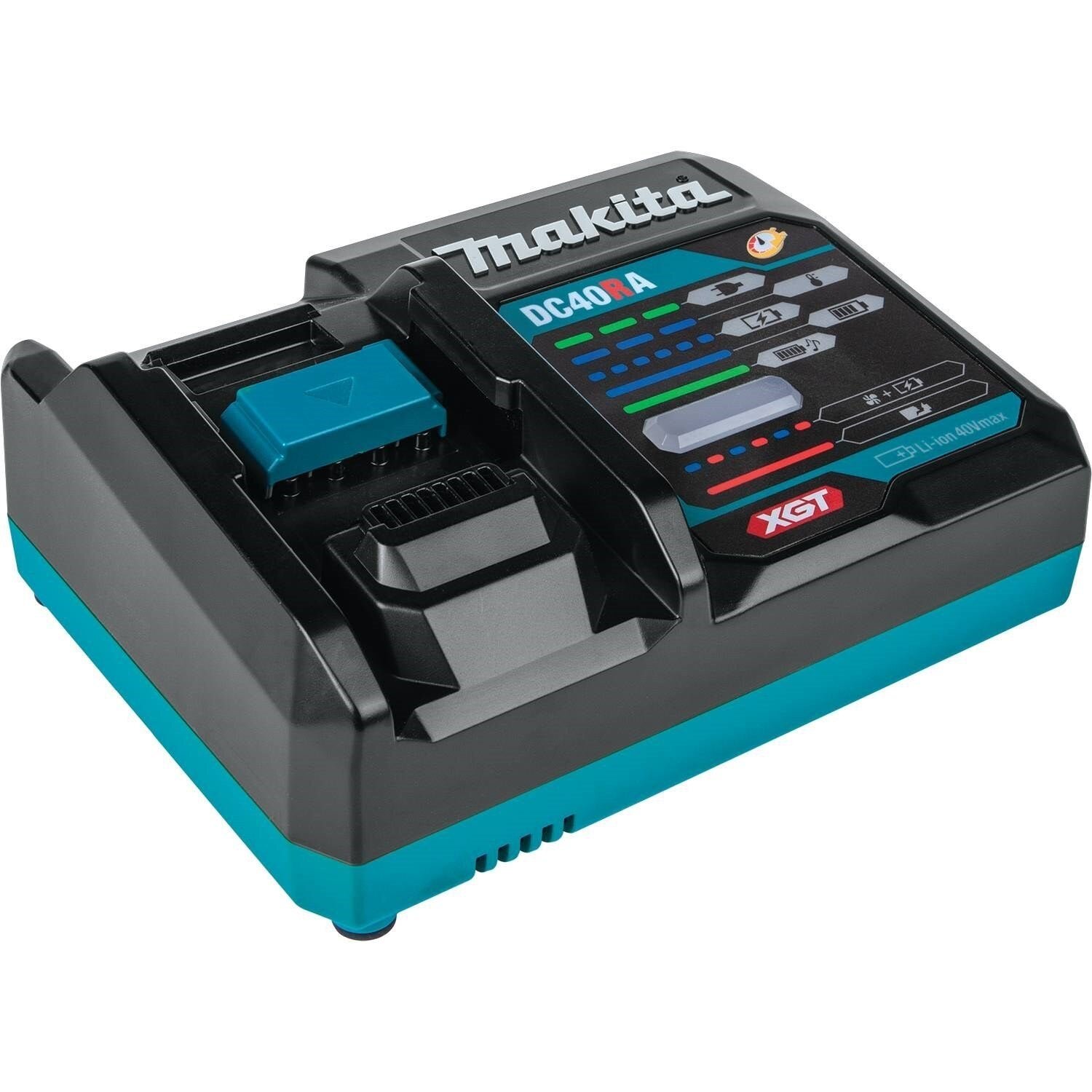

- 40V max XGT® Rapid Optimum Charger (DC40RA)
- 9″ x 1/4″ x 7/8″ INOX Grinding Wheel, 36 Grit (A-96051)
- 9″ Cut-Off Wheel Guard (122913-6)
- Lock Nut Wrench (782412-6)
- Side Handle (143486-6)
- Tool Bag
Makita GAG10M1 Features
- OUTPOWER: Makita-built brushless motor along with a single 40V max XGT® battery combine to deliver the power performance required for heavy-load application
- OUTSMART: Automatic-start Wireless System (AWS®) utilizes Bluetooth® technology for wireless power-on/off communication between tool and dust extractor (AWS® Transmitter sold separately)
- OUTLAST: Electronic current limiter helps protect the motor from overload in high torque application
- Active Feedback-sensing Technology (AFT®) turns the motor off if rotation of the wheel is suddenly forced to stop
- Electric brake stops the grinding or cut-off wheel in 4.5 seconds or less for maximum productivity
- Anti-restart protection engineered to prevent motor start up when battery is inserted with switch locked on
- Soft start suppresses start-up reaction for smooth start-ups and longer gear life

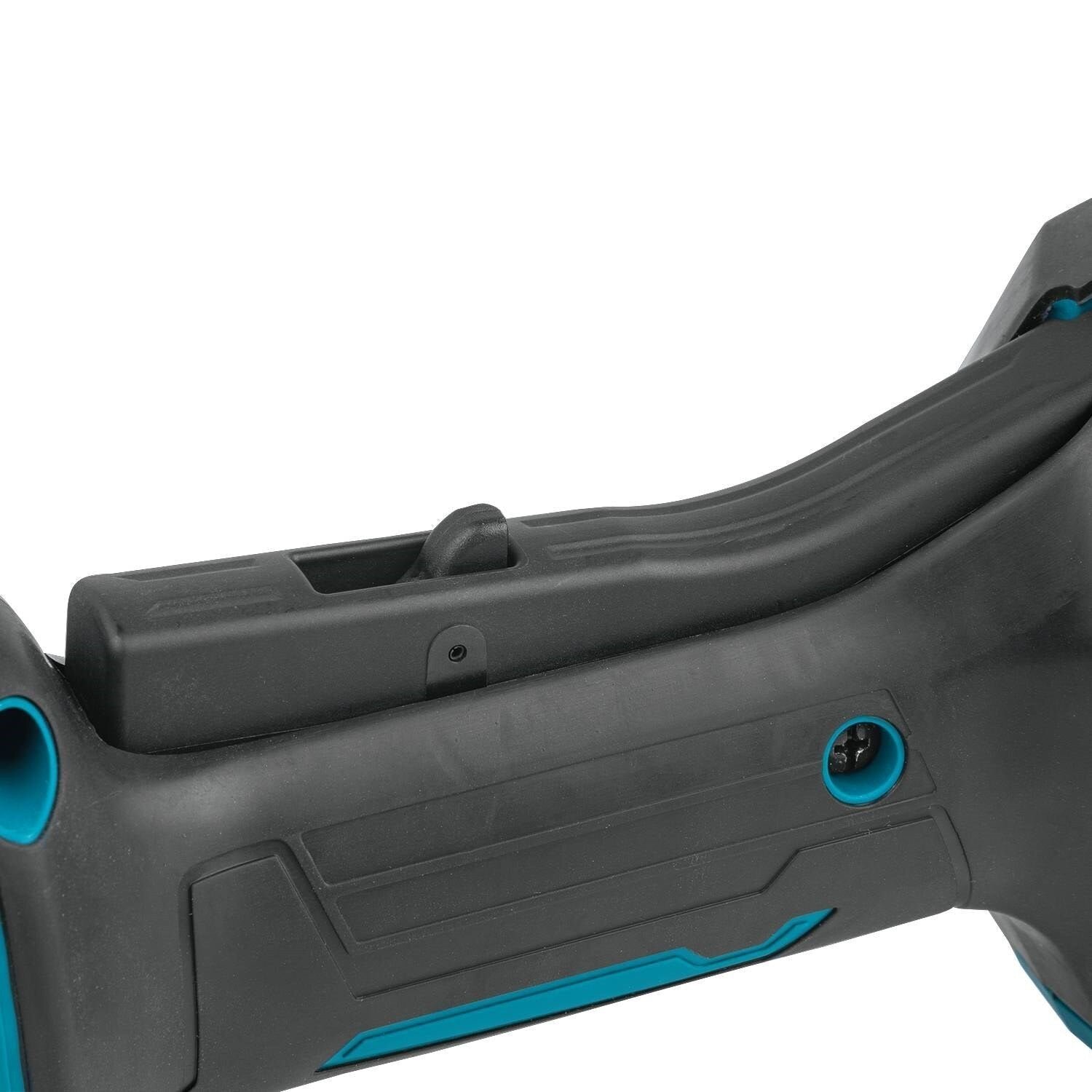

- Paddle switch with no lock-on for operator convenience
- Spiral bevel gears for smoother rotations and a more efficient transfer of energy
- Reinforced metal gear housing engineered for maximum job site durability
- Wire mesh intake covers are engineered to prevent debris from entering motor

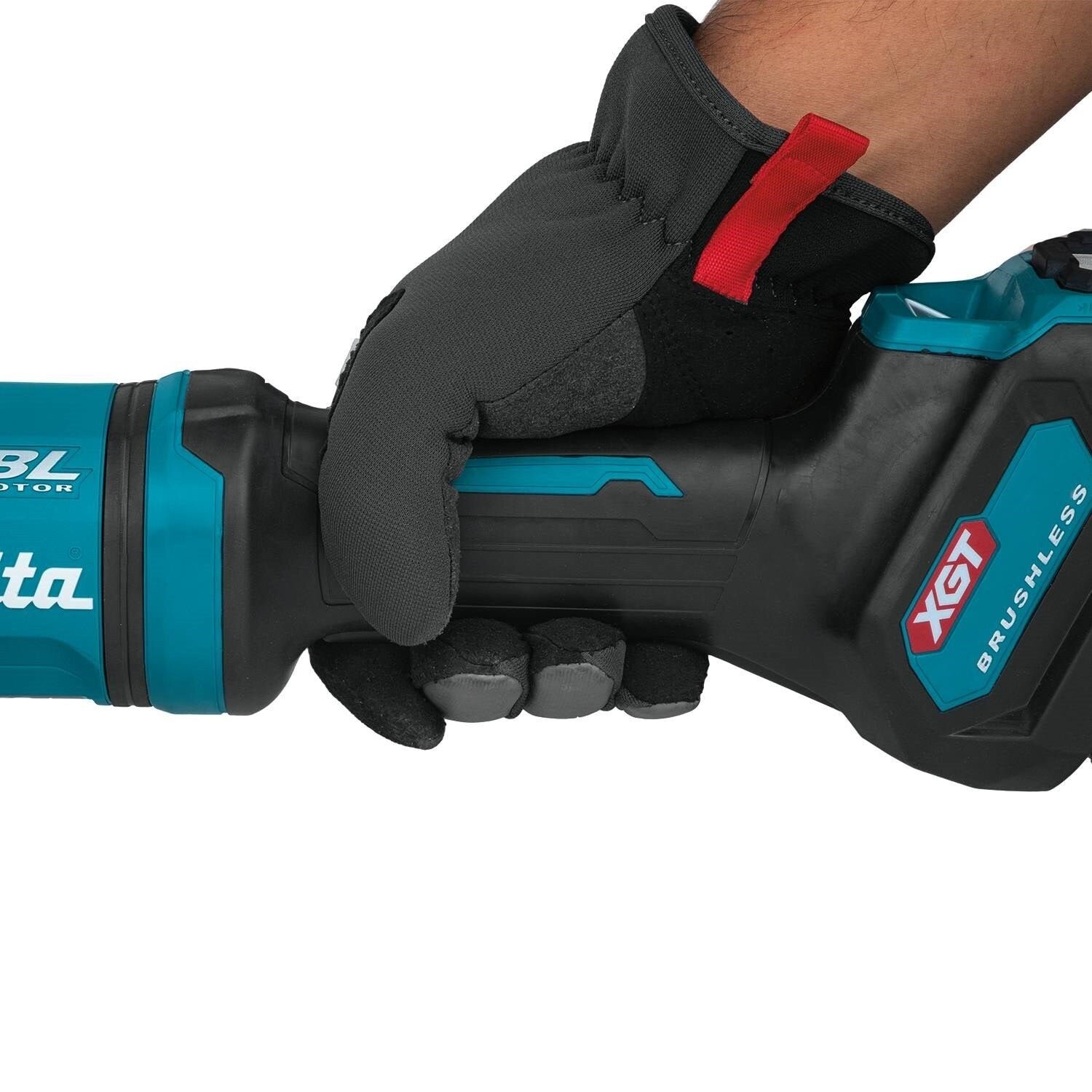

- Vibration absorbing back handle is isolated from the motor housing effectively reducing vibration to the operator’s hands
- Rubberized soft grip provides increased comfort on the job

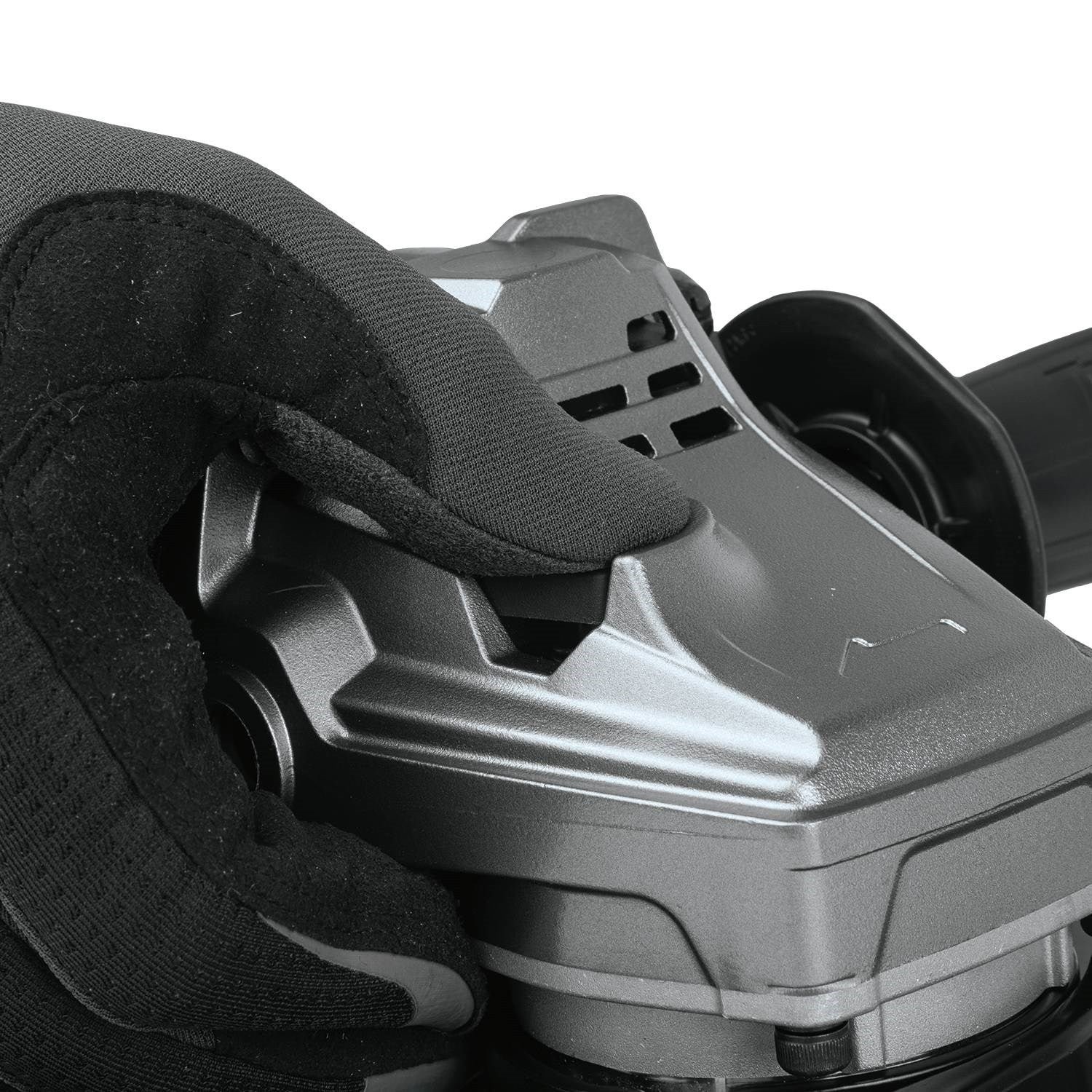

- Tool-less guard rotation allows for easy adjustment
- Dust Extraction Cutting Guard is available for concrete cutting applications
- Extreme Protection Technology (XPT™) is engineered for improved dust and water resistance for operation in harsh conditions
- The digital communication within XGT® optimizes performance to provide up to 2X longer sustained power under heavy-load applications
- The digital communication within XGT® actively monitors and protects against overload, over-discharge and overheating
Makita GAG10M1 Specifications
| System | XGT |
| Wheel Diameter | 9″ |
| No Load Speed | 6,600 RPM |
| Spindle Type | 5/8″ – 11 UNC |
| Lock-On Switch | No |
| Lock-Off Switch | Yes |
| Switch Type | Rear trigger handle |
| Electric Brake | Yes |
| Variable speed dial | No |
| Automatic-start Wireless System (AWS™) | Yes (Transmitter Included) |
| Overall Length | 21″ |
| Net Weight (with battery) | 10.8 lbs. |
| Power Type | Cordless |
| Bind-Up Control | Yes |
| Shipping Weight | 28.67 lbs. |
| UPC Code | 088381-733908 |
